UNDERCARRIAGE PARTS
Undercarriage parts

Labyrinth Disk

The Labyrinth Disk provides critical sealing for armored vehicle track suspension systems. CEW Defense manufactures this precision component from high-strength alloy steel. Our CNC machining achieves ±0.01mm toler...

Request a Quote
← Back to Products

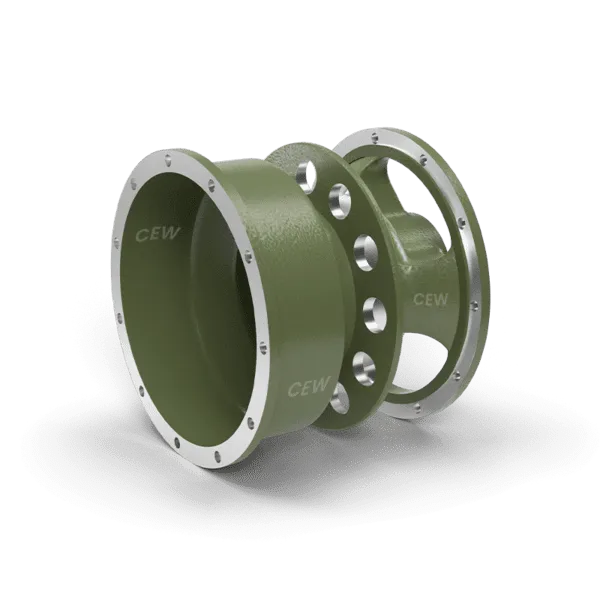

Labyrinth Disk
CEW — Precision Cast

Product Overview

The Labyrinth Disk provides critical sealing for armored vehicle track suspension systems. CEW Defense manufactures this precision component from high-strength alloy steel. Our CNC machining achieves ±0.01mm tolerances for perfect fitment. This design prevents contaminant ingress while retaining lubricants under extreme conditions. Each disk features optimized groove geometry for effective fluid management. We apply specialized surface treatments to enhance wear resistance against abrasive particles. Sealed bearing interfaces maintain operational integrity during high-vibration maneuvers. Our manufacturing process ensures consistent dimensional accuracy across all production runs. Every labyrinth disk undergoes rigorous pressure and leak testing. This component meets stringent international defense quality standards.

Key technical specifications include:
  • Material: Precision-machined high-strength alloy steel.
  • Tolerance: CNC machined to ±0.01mm precision.
  • Treatment: Surface-hardened for abrasive resistance.
  • Function: Contaminant sealing and lubricant retention.
  • Application: Main battle tanks and tracked armored vehicle suspension.
